Server-side Tracking

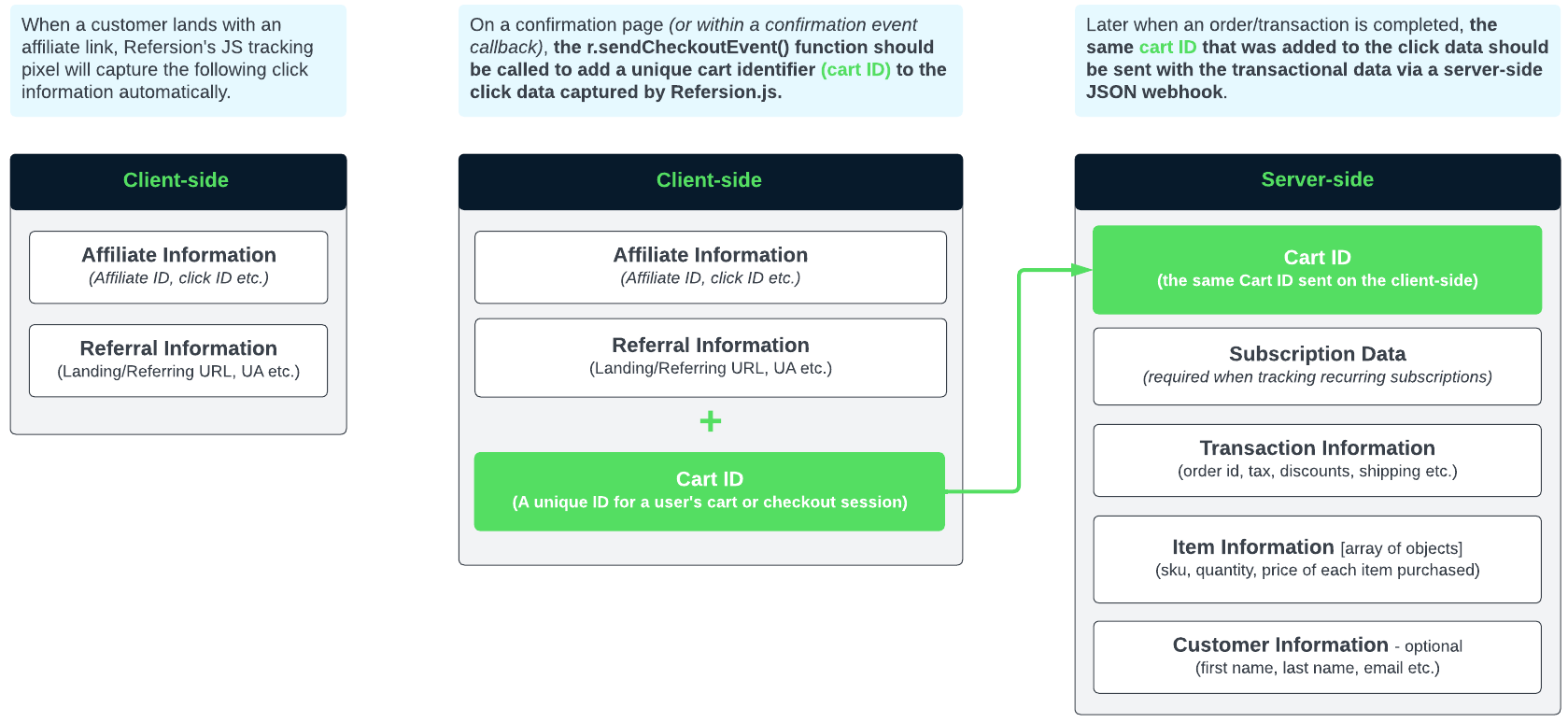

Server-side tracking works by matching affiliate referral activity on the front end of your website to the transactional data your backend sends to Refersion later. The diagram below shows how the two halves connect for link-based affiliate referrals.

Client-side click data carries affiliate and referral information plus a cart ID, and the same cart ID is later sent server-side alongside the transaction, subscription, item, and customer data.

This guide has three steps: two client-side, one server-side.

Step 1 (client-side) — Track visits

This snippet captures the click when an affiliate refers a shopper to your website. Copy it into the <head> section of every page where you expect affiliates to drive traffic, replacing YOUR-PUBLIC-KEY with the Public API key from your Refersion account.

<!-- REFERSION TRACKING: BEGIN -->
<script>
! function(e, n, t, i, o, c, s, a) {
    e.TrackingSystemObject = "r", (s = n.createElement(t)).async = 1, s.src = "https://cdn.refersion.com/refersion.js", s.onload = function() {

        // Replace with your Refersion Public API Key
        r.pubKey = "YOUR-PUBLIC-KEY";

        // Uncomment next line if you need to debug during testing
        // r.settings.dbg_mode = true;

        r.initializeXDLS().then(() => {
            r.launchDefault().then(() => {

                // Send a custom event that can be listened to later
                const rfsnTrackingEvent = new Event("refersion-loaded");
                document.dispatchEvent(rfsnTrackingEvent);

            })
        })
    }, (a = n.getElementsByTagName(t)[0]).parentNode.insertBefore(s, a)
}(window, document, "script");
</script>
<!-- REFERSION TRACKING: END -->

Step 2 (client-side) — Identify visits

Once clicks are tracked on your site, Refersion needs a way to associate the click that happened in the browser with the order data you will send from your server later.

Webhooks are reported server-side, so Refersion cannot read the shopper's browser session at that point. Instead you send a cart_id: a value that appears both in the click data and in the webhook, linking the two together.

The cart_id may be any string value up to 255 characters.

Choose an unguessable cart_id

Make sure cart_id is not sequential or easily guessed — use something like a session ID or an encrypted combination of several strings.

Some platforms already provide an identifier you can reuse. If yours isn't listed, look for an equivalent identifier or generate your own.

Platform	Sample identifier	Availability	Reference
Shopify	Cart Token	All storefront pages	Get Cart (Ajax API)
Shopify	Checkout Token	After creating a checkout	Checkout Storefront API
BigCommerce	Cart ID / Checkout ID	All pages (after a cart is created)	Get cart
WooCommerce	Order Key	Order confirmation page	Order information breakdown
Stripe	Customer ID	After creating a customer	Create a customer (REST API)
Stripe	Subscription ID	After creating a subscription	Create a subscription (REST API)
Chargebee	Subscription ID	After creating a subscription	Subscription attributes (REST API)

Code snippet for identifying visits

Use the snippet below to report your cart_id to Refersion during the shopper's browsing session. Add it near the bottom of your "Thank You" or order confirmation page, usually just before the closing </body> tag. If your site has no confirmation page, call sendRefersionCheckoutEvent() directly from your code once the order completes.

Replace YOUR-CART-ID with the actual cart_id value from your site.

<!-- REFERSION TRACKING: BEGIN -->
<script>
function sendRefersionCheckoutEvent(cartID) {
    const rfsn = {
        cart: cartID,
        id: localStorage.getItem("rfsn_v4_id"),
        url: window.location.href,
        aid: localStorage.getItem("rfsn_v4_aid"),
        cs: localStorage.getItem("rfsn_v4_cs")
    };
    r.sendCheckoutEvent(rfsn.cart, rfsn.id, rfsn.url, rfsn.aid, rfsn.cs);
}

// Listen for the custom event added previously
document.addEventListener("refersion-loaded", function() {

    // Obtain your cart ID from your commerce platform or create one, and replace YOUR-CART-ID
    let uniqueCartID = "YOUR-CART-ID";

    // Send your cart ID value to the checkout function
    sendRefersionCheckoutEvent(uniqueCartID)
})
</script>
<!-- REFERSION TRACKING: END -->

Run this on the same domain and security level

The snippet above must run on the same domain and security level (http or https) where the shopper started their session.

If the shopper starts on https://example.com, the snippet must also run on a page of https://example.com — for example https://example.com/orders/thank-you.
If shoppers finish checkout elsewhere, such as https://shop.example.com or https://checkout.example.com, you need cross-domain tracking.
Alternatively, call the function before the shopper switches domains.

Step 3 (server-side) — Post the webhook

Report the order as a JSON string containing the order data and the cart_id you sent in Step 2. Send your Refersion API keys in the request headers. Here is the JSON Refersion expects:

{
	"cart_id": "DDXqfBngTWuX8N8Asqr2mY3RkmHCXdM7Vz6mdHkjwrEnN5zyRY",
	"order_id": "20150401102883",
	"shipping": 9.99,
	"tax": 0.57,
	"discount": 2.25,
	"discount_code": "HOLIDAY1",
	"currency_code": "USD",
	"customer": {
		"first_name": "John",
		"last_name": "Doe",
		"email": "[email protected]",
		"ip_address": "234.192.4.75"
	},
	"items": [
		{
			"price": 5.50,
			"quantity": 2,
			"sku": "PROD_A",
			"name": "Product A"
		},
		{
			"price": 10.00,
			"quantity": 1,
			"sku": "PROD_B",
			"name": "Product B"
		},
		{
			"price": 15.00,
			"quantity": 3,
			"sku": "PROD_C",
			"name": "Product C"
		}
	]
}

Deliver the payload with an HTTP POST to https://inbound-webhooks.refersion.com/tracker/orders/paid. Below is an example in PHP using cURL.

<?php

// The complete data that you are sending
$order_data = array(...); // Omitting data for demonstration

// Convert array into JSON
$json_data = json_encode($order_data);

// The URL that you are posting to
$url = 'https://inbound-webhooks.refersion.com/tracker/orders/paid';

// Start cURL
$curl = curl_init($url);

// Verify that our SSL is active (for added security)
curl_setopt($curl, CURLOPT_SSL_VERIFYPEER, TRUE);

// Send as a POST
curl_setopt($curl, CURLOPT_CUSTOMREQUEST, 'POST');

// The JSON data that you have already compiled
curl_setopt($curl, CURLOPT_POSTFIELDS, $json_data);

// Return the response
curl_setopt($curl, CURLOPT_RETURNTRANSFER, TRUE);

// Set headers to be JSON-friendly
curl_setopt($curl, CURLOPT_HTTPHEADER, array(
    'Content-Type: application/json',
    'Content-Length: ' . strlen($json_data),
    'Refersion-Public-Key: YOUR-PUBLIC-KEY',
    'Refersion-Secret-Key: YOUR-SECRET-KEY')
);

// Seconds (30) before giving up
curl_setopt($curl, CURLOPT_TIMEOUT, 30);
curl_setopt($curl, CURLOPT_CONNECTTIMEOUT, 30);

// Execute post, capture response (if any) and status code
$result = curl_exec($curl);
$status = curl_getinfo($curl, CURLINFO_HTTP_CODE);

// Close connection
curl_close($curl);

Keep your Secret key server-side

The webhook is authenticated with both Refersion-Public-Key and Refersion-Secret-Key. Send them only from trusted server-side code — never from the browser.

Variable descriptions

Transaction data

A transaction represents the entire order that occurred, and contains the following values:

Value	Type	Required	Description
`cart_id`	String	Yes — webhook only	Cart ID matching what you reported as `rfsn.cart` in the `r.sendCheckoutEvent()` function above.
`order_id`	String	Yes	Unique shopping-cart order ID or transaction number used to reference the purchase you're reporting.
`subscription_id`	String	Yes — subscriptions only	For subscription purchases only: a unique identifier representing the whole subscription, which can reference all the individual `order_id`s within it. Only available in webhook reporting.
`is_subscription`	Boolean	Yes — subscriptions only	Set to `TRUE` when reporting an event that belongs to a subscription; otherwise leave blank. Only available in webhook reporting.
`auto_credit_affiliate_id`	Number	No	The ID of the affiliate you'd like to credit the order to.
`shipping`	Number	No	Total shipping and handling the customer was charged for the order.
`tax`	Number	No	Total tax the customer was charged for the order.
`discount`	Number	No	Total in discounts that were applied to the order.
`discount_code`	String	No	The discount or coupon code that was used on the order.
`currency_code`	String	Yes	The three-letter currency code of the order totals you are reporting. Example: `USD`, `CAD`, `GBP`.

Customer data

A customer represents the individual who purchased, and contains the following values:

Value	Type	Required	Description
`first_name`	String	No	Customer's first name.
`last_name`	String	No	Customer's last name.
`email`	String	No	Customer's email address.
`ip_address`	String	No	The IP address of the customer.

Item data

An item represents an individual product the customer ordered, and contains the following values:

Value	Type	Required	Description
`sku`	String	Yes	A unique product SKU or identifier. Can be blank, but we highly recommend populating it.
`name`	String	No	The name of the item.
`quantity`	Number	Yes	Total quantity ordered of the product.
`price`	Number	Yes	Price of each item. For example, if the customer ordered 10 items at $5 each, report `5`, not `50`. Do not include currency symbols.
